Project Description

HVAC Rectangular Duct line Square duct Auto Prodution Line V

1.LINE V

Main Features:

There are two styles:

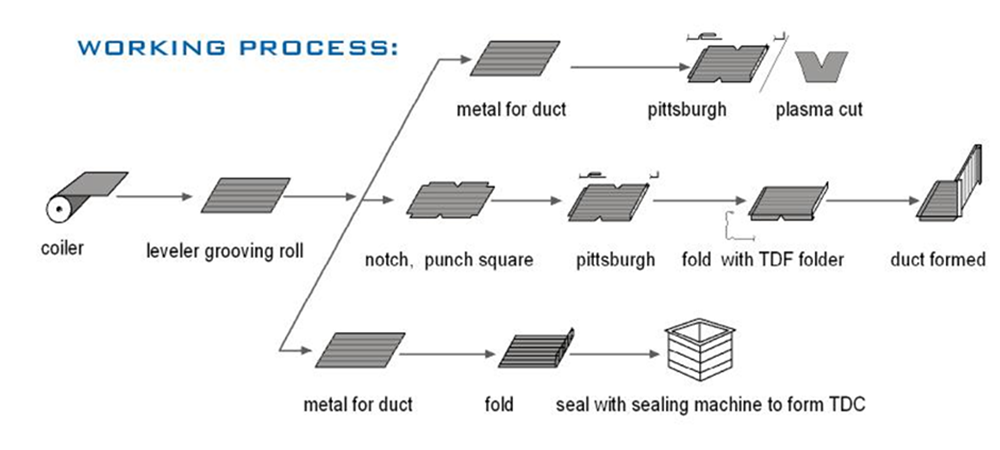

one is linear type V, them composed of a decoiler, leveler grooving unit, “V” and “口” notching unit, cutting unit, bending unit,reciprocating lock former unit, feed extraman unit, duplex flange (angle iron & TDF), automatic folder unit composition;

Another is U type V,also composed of a decoiler, leveler grooving unit, “V” and “口” notching unit, cutting unit, bending unit,reciprocating lock former unit, feed extraman unit, duplex flange (angle iron & TDF), automatic folder unit composition;

Except for the above standard configuration, the two types of duct line can be customized based on customer demand with the support of punching of the reinforce holes unit, C & S flange connection required for notching unit and forming unit, U-shaped duct production line can be added more .

Basic Configuration:

  • Two electric coil cradles, 4 material trays (5-7t each roll)

  • One rack

  • One host (line 2 host)

  • One mechanical arm clutching, locating and transferring platform

  • One movable locking machine

  • One duplex TDF flange forming machine

  • One duplex angle steel flange forming machine

  • One servo feeding platform

  • One hydraulic folding machine

  • One set of computer controlling system

Technical Data
Model DML-V-1250 DML-V-1550
Thickness (mm) 0.5-1.2 0.5-1.2
Max width (standard) (mm) 1250 1550
Max working speed( m/min) 12 12
Coiler Max-weight (KG) 8000 8000
Power (KW) 26 28
Weight 15000 16000
Dimension 2400*3500*1500 2400*3800*1500
