Project Description

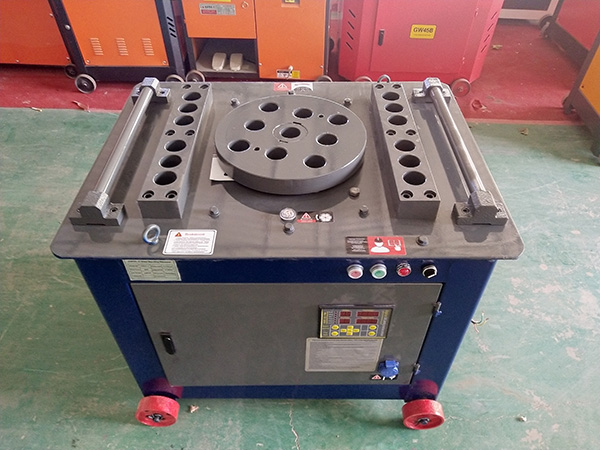

GW50 Series automatic steel bar bender popular economical rod bending machine
Machine Feature:
GW50 adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality alloyed steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.
Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.
Insert pin type disk and movable saddles for a precise adjusting of the bending angle.
CE certification
| Techinical Data | ||||
| Model | GW50A | GW50B | GW50C | GW50E |
| Bending range(mm) | Round bar:6-50 | Round bar:6-50 | Round bar:6-52 | Round bar:6-50 |
| Class bar:6-42 | Class bar:6-42 | Class bar:6-45 | Class bar:6-45 | |
| Motor power | 4kw | 4kw | 4kw(with brake) | 4kw |
| Input voltage | Three phase 220v/380v/415v or customized | |||
| Motor speed | 1440rpm | |||
| Disk diameter(mm) | 400 | 350 | 400 | 400 |
| Overall size(mm) | 965*785*780 | 970*830*860 | 870*810*850 | 1000*920*840 |
| weight | 350kg | 380kg | 380kg | 350kg |
| Driving mode | Worm gear | Worm gear | gear | gear |
| Operation mode | Hand manual | Hand manual | automatic | Digital panel |
